Introduction:

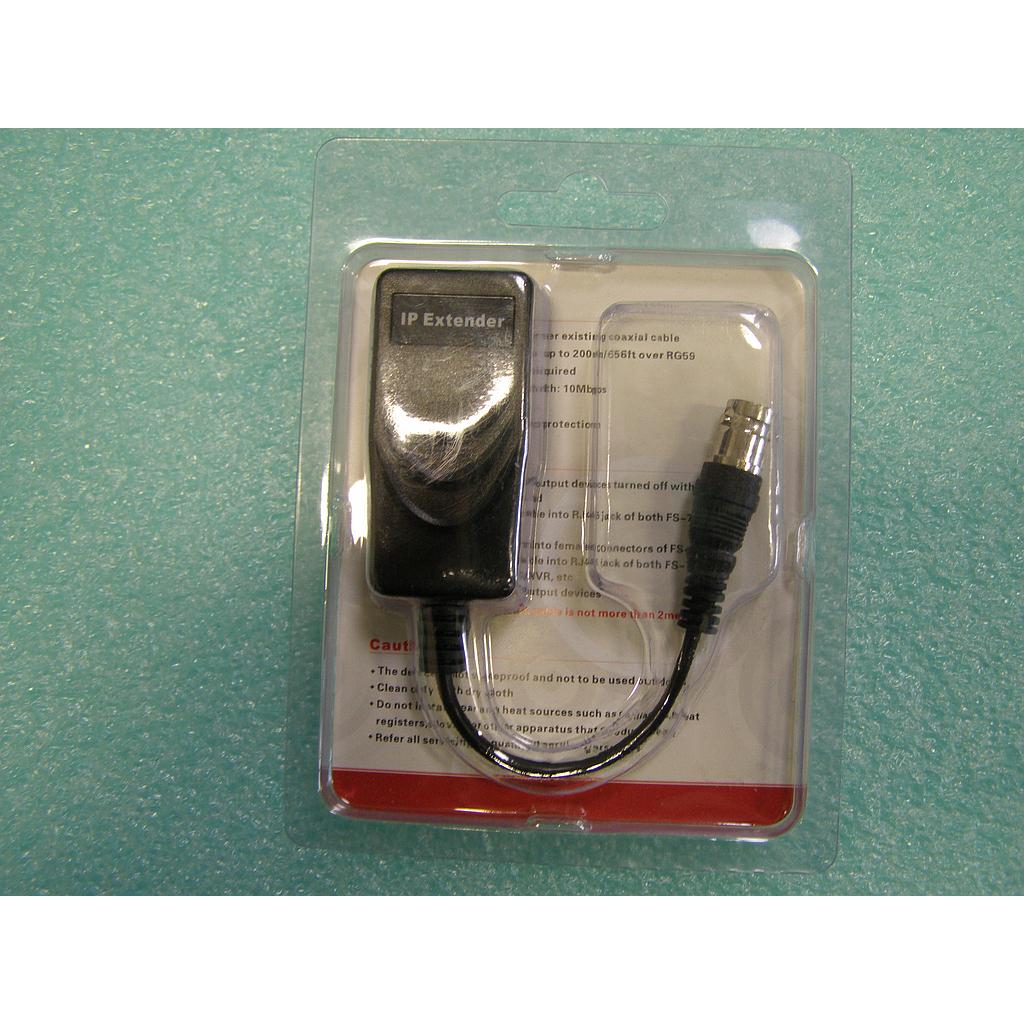

Passive Ethernet Extender over Coax is designed to extend the range of any TCP/IP device beyond the 300ft (100m) limit of Ethernet. The unit does not filter out any protocols, codes, or applications, ensuring compatibility with any IP camera and its software.

Specifications:

Type Passive Ethernet Extender over Coax Range* 10Mbps (RG59) Up to 650ft (200m) 100Mbps (RG59) Up to 325ft (100m) Input connector RJ-45 Output connector BNC Link cable RG59/U or better Ethernet speed 10/100 Mbps Standard IEEE802.3 10Base-T/100Base-T

Installation:

1. Determine the location where the units will be placed as well as how much cable will be required.
2. Connect one unit to an IP camera or other TCP/IP output device using Cat5e/6 cable of not more than 6.5ft (2m).
3. Connect one unit to a DVR, PC or other TCP/IP receiving device using Cat5e/6 cable Cat5e/6 cable of not more than 6.5ft (2m). Connect via the Ethernet port found on the front of the Passive Ethernet Extender.
4. Run a coax cable between the two Passive Ethernet Extenders and connect both ends.
5. Switch on the IP source (i.e. CCTV camera) and verify that the system is functioning properly.
