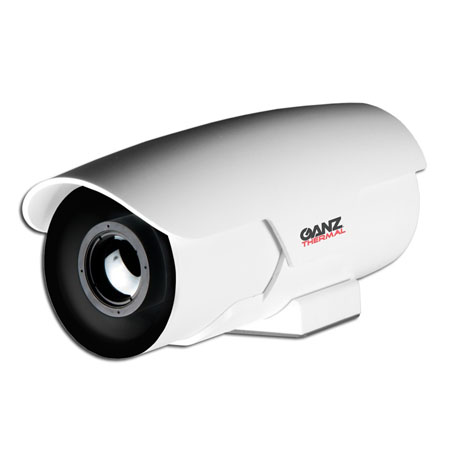

Ganz ZNT6-HAT2FN26-N Fixed Thermal, 17um, 50 NETD, 640x480 res., 30 fps, 12 degree FOV, NTSC
Ganz ZNT6-HAT2FN26-N Fixed Thermal, 17um, 50 NETD, 640x480 res., 30 fps, 12 degree FOV, NTSC
Camera Module (Pixel Array)
Resolution - 640x480
Detection Type - Uncooled Vanadium Oxide Microbolometer
Sensor Pixel Size - 17 μm
Spectral Response - 8 -14 μm
Sensitivity (NETD) - < 50 mK at f/1.0
Lens (FOV) - 640x480 - 12.4° (50mm)
Scanning System - Progressive Scan
Specifications for Ganz ZNT6-HAT2FN26-N Fixed Thermal, 17um, 50 NETD, 640x480 res., 30 fps, 12 degree FOV, NTSC
| Condition | New |
| SKU | ZNT6-HAT2FN26-N |
| Manufacturer | CBC America |
| Condition | New |
| Auto Iris Control? | No |
| Camera Type | Thermal IP - Special Applications |
| Electrical Requirements | 12VDC/24VAC/POE |
| Lens Type | Fixed |
| Wide Dynamic? | No |
| Waterproof? | Yes |
| Warranty Duration | (1) Year |
